杰昊強制淋浴系統

SPINCLE強制淋浴系統為模塊化設計，可配有強水噴淋系統，也可同時配有空氣凈化系統。

SPINCLE強制淋浴系統已經經過獨立測試和驗證，通過強制方式對操作者進行淋浴，未經淋浴的情況下不可走出污染區。底部設置下水管道，并設置儲水霜，通過恒溫設備，保證供水溫度?？膳溆锌諝鈨艋瘑卧M(jìn)行空氣吹淋。強制淋浴是獨立的單元，配有自己的系統，可多臺合并使用，也可以接入中控系統，水量及強制淋浴時間均可調，配有急停開關，并可根據客戶要求設置控制面板。

為了滿足生物實驗室的要求并實現更高的防護標準，我們設計了一種強制性水淋浴系統，用于個人從細菌環境過渡到無菌環境。該系統集成了我們在生物實驗室通道多年的經驗，以及具有互鎖功能的膨脹密封門和當前的水淋浴模式，為用戶提供了更大的便利性和靈活性。

在制藥生產環境中，水淋浴系統變得越來越重要，被認為是確保所有人員安全和用戶安全的關鍵。

技術規格：
- 采用SS304/316不銹鋼材質
- 帶互鎖功能的不銹鋼門
- 高端西門子PLC自動控制系統
- 獨立的淋浴系統，可調節噴水量和時間
- 恒溫供水系統
- 可選的空氣凈化系統
- 緊急停止按鈕
- 電源供應：交流220伏特，50赫茲

組件：
- 去污室
- 強制去污淋浴自動化系統
- 用于消毒和去污的水淋浴系統

關鍵特點：
- 目的：促進從受污染環境到無菌環境的過渡，確保人員安全和無菌環境的完整性。
- 設計：結合了實驗室通道多年的經驗，集成了具有互鎖功能的不銹鋼門，以實現安全的過渡。
- 靈活性：根據特定需求，提供調節噴水量和持續時間的便利。
- 重要性：在制藥生產環境中至關重要，以確保人員和產品的安全。

詳細技術規格：
- 柜體：采用SS304/316材質，確保耐用性和耐蝕性。適用于BSL3或BSL4高等級實驗室。
- 門：配備SS304/316不銹鋼門，提供密封效果，并具有互鎖功能以防止交叉污染。
- 控制系統：使用高端西門子PLC自動控制，確?？煽窟\(yùn)行。
- 淋浴系統：具有獨立的淋浴系統，可以根據需要調節噴水量和時間。
- 水供應：可選恒溫供水系統，以保持一致的環境。
- 空氣凈化：可以添加可選的空氣凈化系統，以增強空氣質量管理。
- 安全特性：包括緊急停止按鈕，以便在操作過程中立即響應任何問題。
- 電源供應：操作電壓為交流220伏特，50赫茲，適用于許多工業應用。

該系統是在高污染風險環境中維護高標準安全和衛生的關鍵組成部分，例如在高級生物研究和制藥制造中。

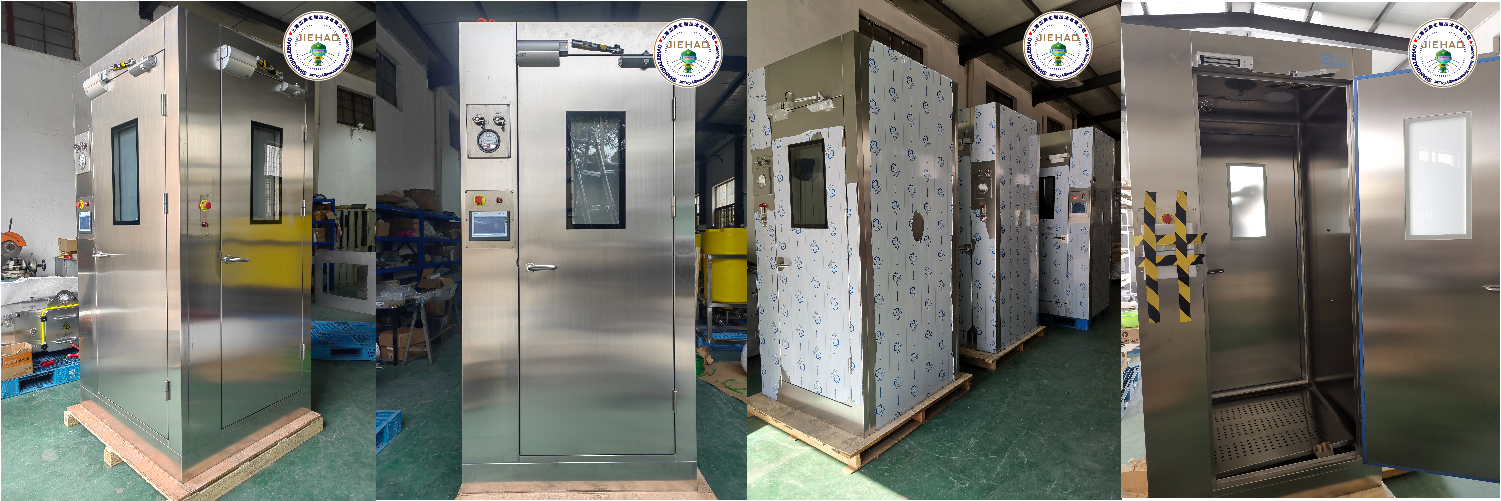

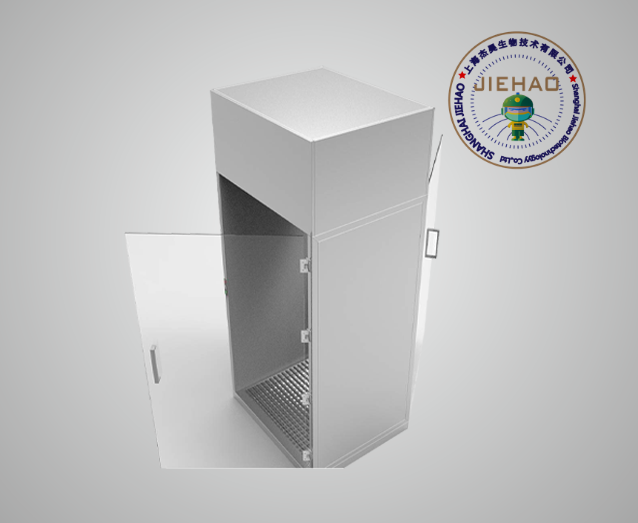

The SPINCLE Forced Shower System is designed modularly, capable of being equipped with a powerful water spray system and, if necessary, an air purification system as well.

The SPINCLE Forced Shower System has undergone independent testing and verification. It enforces a shower on the operator, preventing exit from the contaminated area without undergoing the shower process. It features a drainage system at the bottom and a water storage tank, with a constant temperature device to ensure the water supply temperature. An air purification unit can be added for air showering. The forced shower is an independent unit with its own system, capable of being used in multiple units or integrated into a central control system. The water volume and forced shower duration are adjustable, equipped with an emergency stop switch, and a control panel can be set up according to customer requirements.

To meet the requirements of biological laboratories and to achieve higher protection standards, we have designed a mandatory water shower system for individuals transitioning from a bacterial environment to a sterile one. This system integrates our years of experience in the passageways of biological laboratories, as well as inflated seal doors with interlocking functions and current water shower modes, providing users with greater convenience and flexibility.

In pharmaceutical production environments, water shower systems are becoming increasingly important and are considered key to ensuring the safety of all personnel and the security of the user.

Technical Specifications:
- Constructed with SS304/316 stainless steel
- Stainless steel doors with interlocking functions
- High-end Siemens PLC automatic control system
- Independent shower system with adjustable spray volume and duration
- Constant temperature water supply system
- Optional air purification system
- Emergency stop button
- Power supply: AC220V 50HZ

Components:
- Decontamination Chamber
- Automated Forced Decontamination Shower System
- Water shower system for disinfection and decontamination

Key Features:
- Purpose: To facilitate the transition from a contaminated environment to a sterile one, ensuring the safety of personnel and the integrity of the sterile environment.
- Design: Combines years of experience in laboratory passageways, integrating stainless steel doors with interlocking functions for secure transitions.
- Flexibility: Provides the convenience of adjusting the spray volume and duration according to specific needs.
- Importance: Crucial in pharmaceutical production environments to ensure the safety of personnel and products.

Detailed Technical Specifications:
- Cabinets: Made of SS304/316 material, ensuring durability and corrosion resistance. Suitable for high-level laboratories such as BSL3 or BSL4.
- Doors: Equipped with SS304/316 stainless steel doors, providing a sealed effect and interlocking functions to prevent cross-contamination.
- Control System: Uses a high-end Siemens PLC for automatic control, ensuring reliable operation.
- Shower System: Features an independent shower system with adjustable spray volume and duration as needed.
- Water Supply: Optional constant temperature water supply system to maintain a consistent environment.
- Air Purification: An optional air purification system can be added to enhance air quality management.
- Safety Features: Includes an emergency stop button for immediate response to any issues during operation.
- Power Supply: Operates on AC220V 50HZ, suitable for many industrial applications.

This system is a critical component in maintaining high standards of safety and hygiene in environments with a high risk of contamination, such as in advanced biological research and pharmaceutical manufacturing.
